K-285050

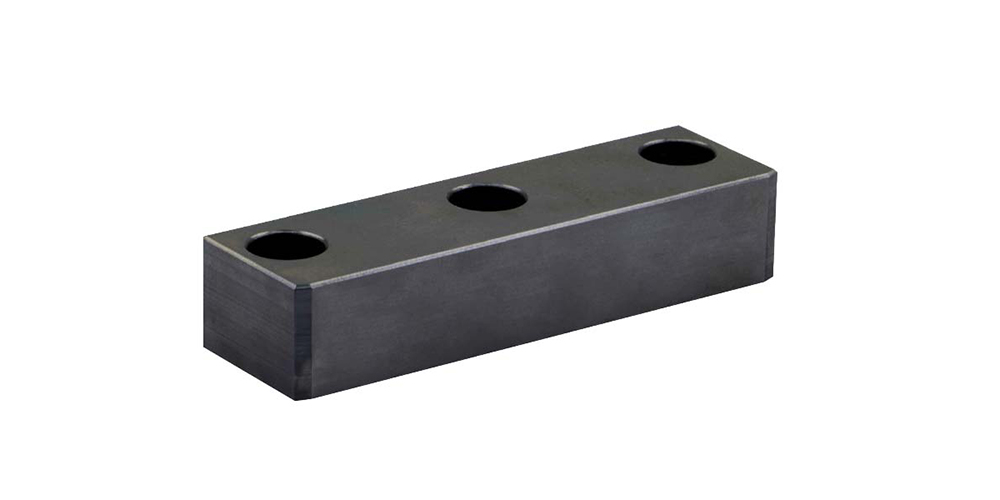

Retaining Rail - Hardened - DLC
Technical Information
Material:
Steel
Hardness:
58 HRC+DLC
Coating:
none
  • Optimal gliding and dry run properties achieved by DLC coating
  • Additional oil grooves
  • System bore pitch 50mm
  • Individual cutting to desired length possible

K-285050

Login to view prices

Retaining Rail – Hardened – DLC

Code Description B H L Screws d1 k l1 b1 Price/1
K-285050-001 Retaining Rail-Hard-DLC -25-16-123 25 16 123 40031/M6-20 6.5 6.5 50 10 P.O.R.
K-285050-002 Retaining Rail-Hard-DLC -25-16-173 25 16 173 40031/M6-20 6.5 6.5 50 10 P.O.R.
K-285050-003 Retaining Rail-Hard-DLC -25-16-223 25 16 223 40031/M6-20 6.5 6.5 50 10 P.O.R.
K-285050-004 Retaining Rail-Hard-DLC -25-16-373 25 16 373 40031/M6-20 6.5 6.5 50 10 P.O.R.
Ex Stock
3-5 w-days
5-10 w-days
Contact Sales Office
SKU: K-285050 Category:

Associated Products

  • K-282540

    Gliding Rail-Hardened – DLC

  • K-285050

    Retaining Rail – Hardened – DLC

  • K-282530

    Guide Rail-T Shape – Hardened – DLC

  • K-282510

    Guide Rail Lateral Shouldered – Hardened – DLC
