TGSS2
Tunnel Gate - Square - with Vestige
Technical Information
  • For flat parting surfaces, including vestige with integrated cutting edge
  • Ready to use. No adjustments necessary
  • High wear resistance hot working steel 3343 - 60Hrc
  • Available in Round and Square versions

TGSS2

Login to view prices

Tunnel Gate – Square – with Vestige

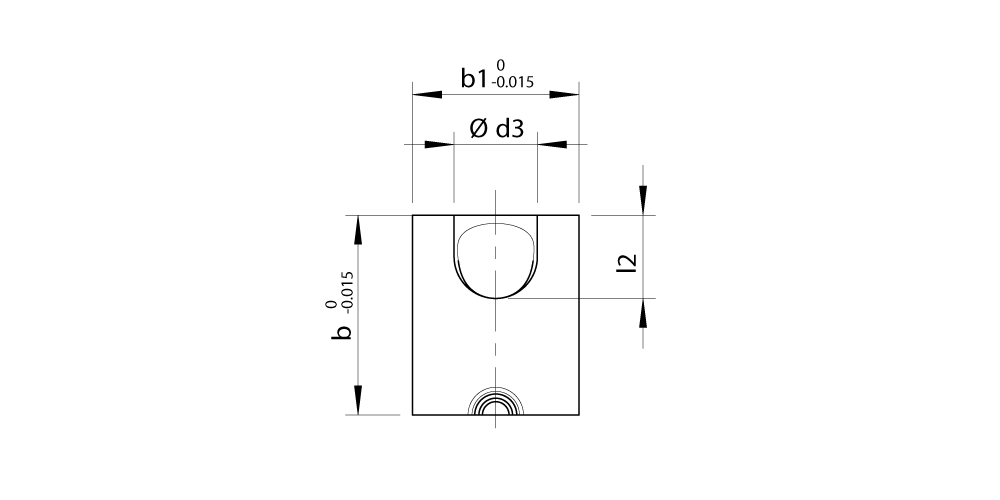

Code Description b b1 d1 d2 d3 h h1 h2 l1 l2 M Price/1
TGS8-06-S2-H Tunnel-gate-insert 8x6mm (square) 8 6 0.6 1.9 3 22 0.6 1.1 13 3.25 4 P.O.R.
TGS8-08-S2-H Tunnel-gate-insert 8x6mm (square) 8 6 0.8 2.1 3 22 0.6 1.1 13 3.25 4 P.O.R.
TGS10-08-S2-H Tunnel-gate-insert 10x8mm (square) 10 8 0.8 2.2 4 22 0.8 1.2 12 4 5 P.O.R.
TGS10-12-S2-H Tunnel-gate-insert 10x8mm (square) 10 8 1.2 2.6 4 22 0.8 1.2 12 4 5 P.O.R.
TGS10-16-S2-H Tunnel-gate-insert 10x8mm (square) 10 8 1.6 3 4 22 0.8 1.2 12 4 5 P.O.R.
TGS12-12-S2-H Tunnel-gate-insert 12x10mm (square) 12 10 1.2 2.6 5 22 0.8 1.4 11 5 5 P.O.R.
TGS12-16-S2-H Tunnel-gate-insert 12x10mm (square) 12 10 1.6 3 5 22 0.8 1.4 11 5 5 P.O.R.
TGS12-20-S2-H Tunnel-gate-insert 12x10mm (square) 12 10 2 3.4 5 22 0.8 1.4 11 5 5 P.O.R.
TGS14-16-S2-H Tunnel-gate-insert 14x12mm (square) 14 12 1.6 3 6 22 0.8 1.6 10 6 6 P.O.R.
TGS14-20-S2-H Tunnel-gate-insert 14x12mm (square) 14 12 2 3.4 6 22 0.8 1.6 10 6 6 P.O.R.
TGS14-24-S2-H Tunnel-gate-insert 14x12mm (square) 14 12 2.4 3.8 6 22 0.8 1.6 10 6 6 P.O.R.
TGS14-28-S2-H Tunnel-gate-insert 14x12mm (square) 14 12 2.8 4.2 6 22 0.8 1.6 10 6 6 P.O.R.
Ex Stock
3-5 w-days
5-10 w-days
Contact Sales Office
SKU: TGSS2 Category:
