TGRS1
Tunnel Gate - Round - with machining allowance
Technical Information
  • With machining allowance on upper surface
  • Slight contourings possible
  • same properties as version S2
  • High wear resistance hot working steel 3343 - 60Hrc
  • Available in Round and Square versions

TGRS1

Login to view prices

Tunnel Gate – Round – with machining allowance

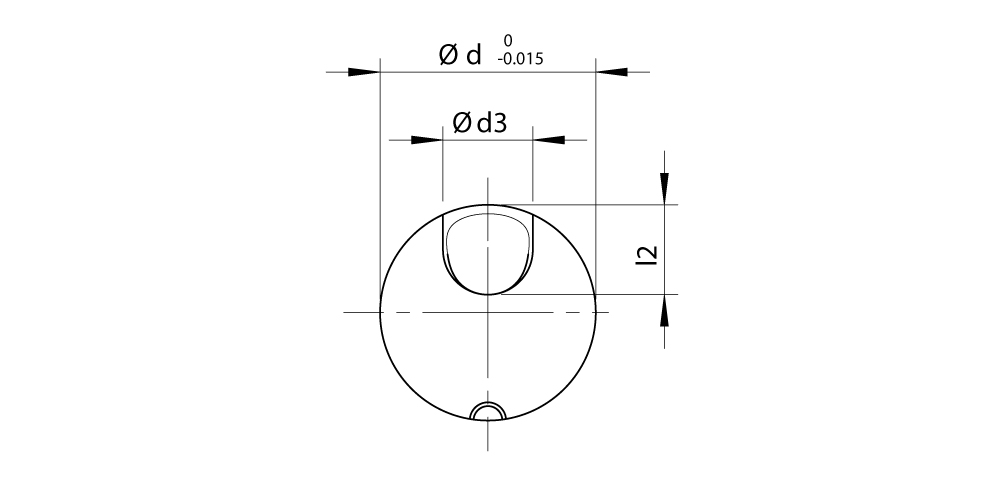

Code Description d d1 d3 h h1 h2 l1 l2 M Price/1
TGR6-06-S1-H Tunnel-gate-insert 6mm (round) 6 0.6 2.5 17.6 0.6 1.4 10 2.5 4 P.O.R.
TGR8-06-S1-H Tunnel-gate-insert 8mm (round) 8 0.6 3 22.6 0.6 1.7 13 3.25 4 P.O.R.
TGR8-08-S1-H Tunnel-gate-insert 8mm (round) 8 0.8 3 22.6 0.6 1.7 13 3.25 4 P.O.R.
TGR10-08-S1-H Tunnel-gate-insert 10mm (round) 10 0.8 4 22.8 0.8 2 12 4 5 P.O.R.
TGR10-12-S1-H Tunnel-gate-insert 10mm (round) 10 1.2 4 22.8 0.8 2 12 4 5 P.O.R.
TGR10-16-S1-H Tunnel-gate-insert 10mm (round) 10 1.6 4 22.8 0.8 2 12 4 5 P.O.R.
TGR12-12-S1-H Tunnel-gate-insert 12mm (round) 12 1.2 5 22.8 0.8 2.2 11 5 5 P.O.R.
TGR12-16-S1-H Tunnel-gate-insert 12mm (round) 12 1.6 5 22.8 0.8 2.2 11 5 5 P.O.R.
TGR12-20-S1-H Tunnel-gate-insert 12mm (round) 12 2 5 22.8 0.8 2.2 11 5 5 P.O.R.
TGR14-16-S1-H Tunnel-gate-insert 14mm (round) 14 1.6 6 22.8 0.8 2.4 10 6 6 P.O.R.
TGR14-20-S1-H Tunnel-gate-insert 14mm (round) 14 2 6 22.8 0.8 2.4 10 6 6 P.O.R.
TGR14-24-S1-H Tunnel-gate-insert 14mm (round) 14 2.4 6 22.8 0.8 2.4 10 6 6 P.O.R.
TGR14-28-S1-H Tunnel-gate-insert 14mm (round) 14 2.8 6 22.8 0.8 2.4 10 6 6 P.O.R.
Ex Stock
3-5 w-days
5-10 w-days
Contact Sales Office
SKU: TGRS1 Category:
