SEG1
Circlips for Axles
Technical Information
Material:
Spring Steel

SEG1

Login to view prices

Circlips for Axles

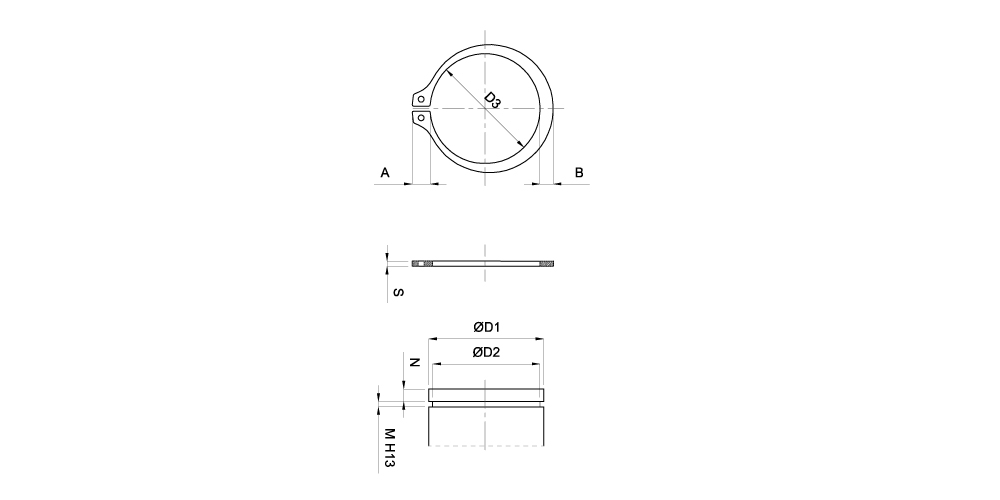

Code Description D1 S D3 A Max B D2 M N Min Price/1
SEG14 SEG1-Circlip for axles Ø4 4 0.4 3.7 2.2 0.9 3.8 0.5 0.3 P.O.R.
SEG15 SEG1-Circlip for axles Ø5 5 0.6 4.7 2.5 1.1 4.8 0.7 0.3 P.O.R.
SEG16 SEG1-Circlip for axles Ø6 6 0.7 5.6 2.7 1.3 5.7 0.8 0.45 P.O.R.
SEG17 SEG1-Circlip for axles Ø7 7 0.8 6.5 3.1 1.4 6.7 0.9 0.45 P.O.R.
SEG18 SEG1-Circlip for axles Ø8 8 0.8 7.4 3.2 1.5 7.6 0.9 0.6 P.O.R.
SEG19 SEG1-Circlip for axles Ø9 9 1 8.4 3.3 1.7 8.6 1.1 0.6 P.O.R.
SEG110 SEG1-Circlip for axles Ø10 10 1 9.3 3.3 1.8 9.6 1.1 0.75 P.O.R.
SEG111 SEG1-Circlip for axles Ø11 11 1 10.2 3.3 1.8 10.5 1.1 0.75 P.O.R.
SEG112 SEG1-Circlip for axles Ø12 12 1 11 3.3 1.8 11.5 1.1 0.9 P.O.R.
SEG113 SEG1-Circlip for axles Ø13 13 1 11.9 3.4 2 12.4 1.1 0.9 P.O.R.
SEG114 SEG1-Circlip for axles Ø14 14 1 12.9 3.5 2.1 13.4 1.1 1.1 P.O.R.
SEG115 SEG1-Circlip for axles Ø15 15 1 13.8 3.6 2.2 14.3 1.1 1.2 P.O.R.
SEG116 SEG1-Circlip for axles Ø16 16 1 14.7 3.7 2.2 15.2 1.1 1.2 P.O.R.
SEG117 SEG1-Circlip for axles Ø17 17 1 15.7 3.8 2.3 16.2 101 1.5 P.O.R.
SEG118 SEG1-Circlip for axles Ø18 18 1.2 16.5 3.9 2.4 17 1.3 1.5 P.O.R.
SEG119 SEG1-Circlip for axles Ø19 19 1.2 17.5 3.9 2.5 18 1.3 1.5 P.O.R.
SEG120 SEG1-Circlip for axles Ø20 20 1.2 18.5 4 2.6 19 1.3 1.5 P.O.R.
SEG121 SEG1-Circlip for axles Ø21 21 1.2 19.5 4.1 2.7 20 1.3 1.5 P.O.R.
SEG122 SEG1-Circlip for axles Ø22 22 1.2 20.5 4.2 2.8 21 1.3 1.5 P.O.R.
SEG124 SEG1-Circlip for axles Ø24 24 1.2 22.2 4.4 3 22.9 1.3 1.7 P.O.R.
SEG125 SEG1-Circlip for axles Ø25 25 1.2 23.2 4.4 3 23.9 1.3 1.7 P.O.R.
SEG126 SEG1-Circlip for axles Ø26 26 1.2 24.2 4.5 3.1 24.9 1.3 1.7 P.O.R.
SEG128 SEG1-Circlip for axles Ø28 28 1.5 25.9 4.7 3.2 26.6 1.6 2.1 P.O.R.
SEG129 SEG1-Circlip for axles Ø29 29 1.5 26.9 4.8 3.4 27.6 1.6 2.1 P.O.R.
SEG130 SEG1-Circlip for axles Ø30 30 1.5 27.9 5 3.5 28.6 1.6 2.6 P.O.R.
SEG132 SEG1-Circlip for axles Ø32 32 1.5 29.6 5.2 3.6 30.3 1.6 2.6 P.O.R.
SEG134 SEG1-Circlip for axles Ø34 34 1.5 31.5 5.4 3.8 32.3 1.6 3 P.O.R.
SEG135 SEG1-Circlip for axles Ø35 35 1.5 32.2 5.6 0.9 33 1.6 3 P.O.R.
SEG136 SEG1-Circlip for axles Ø36 36 1.75 33.2 5.6 4 34 1.85 3 P.O.R.
SEG138 SEG1-Circlip for axles Ø38 38 1.75 35.2 5.8 4.2 36 1.85 3.8 P.O.R.
SEG140 SEG1-Circlip for axles Ø40 40 1.75 36.5 6 4.4 37.5 1.85 3.8 P.O.R.
SEG142 SEG1-Circlip for axles Ø42 42 1.75 38.5 6.5 4.5 39.5 1.85 3.8 P.O.R.
SEG145 SEG1-Circlip for axles Ø45 45 1.75 41.5 6.7 4.7 42.5 1.85 3.8 P.O.R.
SEG148 SEG1-Circlip for axles Ø48 48 1.75 44.5 6.9 5 45.5 1.85 4.5 P.O.R.
SEG150 SEG1-Circlip for axles Ø50 50 2 45.8 6.9 5.1 47 1.85 4.5 P.O.R.
SEG152 SEG1-Circlip for axles Ø52 52 2 47.8 7 5.2 49 1.85 4.5 P.O.R.
SEG155 SEG1-Circlip for axles Ø55 55 2 50.8 7.2 5.4 52 1.85 4.5 P.O.R.
SEG156 SEG1-Circlip for axles Ø56 56 2 51.8 7.3 5.5 53 1.85 4.5 P.O.R.
SEG158 SEG1-Circlip for axles Ø58 58 2 53.8 7.3 5.6 55 1.85 4.5 P.O.R.
SEG160 SEG1-Circlip for axles Ø60 60 2 55.8 7.4 5.8 57 1.85 4.5 P.O.R.
SEG162 SEG1-Circlip for axles Ø62 62 2 57.8 7.5 6 59 1.85 4.5 P.O.R.
SEG163 SEG1-Circlip for axles Ø63 63 2 58.8 7.6 6.2 60 2.15 4.5 P.O.R.
SEG165 SEG1-Circlip for axles Ø65 65 2.5 60.8 7.8 6.3 62 2.65 4.5 P.O.R.
SEG168 SEG1-Circlip for axles Ø68 68 2.5 63.5 8 6.5 65 2.65 4.5 P.O.R.
SEG170 SEG1-Circlip for axles Ø70 70 2.5 65.5 8.1 6.6 67 2.65 4.5 P.O.R.
SEG172 SEG1-Circlip for axles Ø72 72 2.5 67.5 8.2 6.8 69 2.65 4.5 P.O.R.
SEG175 SEG1-Circlip for axles Ø75 75 2.5 70.5 8.4 7 72 2.65 4.5 P.O.R.
SEG178 SEG1-Circlip for axles Ø78 78 2.5 73.5 8.6 7.3 75 2.65 4.5 P.O.R.
SEG180 SEG1-Circlip for axles Ø80 80 2.5 74.5 8.6 7.4 76.5 2.65 5.3 P.O.R.
SEG182 SEG1-Circlip for axles Ø82 82 3 76.5 8.7 7.6 78.5 2.65 5.3 P.O.R.
SEG185 SEG1-Circlip for axles Ø85 85 3 79.5 8.7 7.8 81.5 3.15 5.3 P.O.R.
SEG188 SEG1-Circlip for axles Ø88 88 3 82.5 8.8 8 84.5 3.15 5.3 P.O.R.
SEG190 SEG1-Circlip for axles Ø90 90 3 84.5 8.8 8.2 86.5 3.15 5.3 P.O.R.
SEG195 SEG1-Circlip for axles Ø95 95 3 89.5 9.4 8.6 91.5 3.15 5.3 P.O.R.
SEG1100 SEG1-Circlip for axles Ø100 100 4 94.5 9.6 9 96.5 3.15 5.3 P.O.R.
SEG1105 SEG1-Circlip for axles Ø105 105 4 98 9.9 9.3 101 4.15 6 P.O.R.
SEG1110 SEG1-Circlip for axles Ø110 110 4 103 10.1 9.6 106 4.15 6 P.O.R.
SEG1115 SEG1-Circlip for axles Ø115 115 4 108 10.6 9.8 111 4.15 6 P.O.R.
SEG1120 SEG1-Circlip for axles Ø120 120 4 113 11 10.2 116 4.15 6 P.O.R.
SEG1125 SEG1-Circlip for axles Ø125 125 4 118 11.4 10.4 121 4.15 6 P.O.R.
SEG1130 SEG1-Circlip for axles Ø130 130 4 123 11.6 10.7 126 4.15 6 P.O.R.
SEG1135 SEG1-Circlip for axles Ø135 135 4 128 11.8 11 131 4.15 6 P.O.R.
SEG1140 SEG1-Circlip for axles Ø140 140 4 133 12 11.2 136 4.15 6 P.O.R.
SEG1145 SEG1-Circlip for axles Ø145 145 4 138 12.2 11.5 141 4.15 7.5 P.O.R.
SEG1150 SEG1-Circlip for axles Ø150 150 4 142 13 11.8 145 4.15 7.5 P.O.R.
SEG1155 SEG1-Circlip for axles Ø155 155 4 146 13 12.2 150 4.15 7.5 P.O.R.
SEG1160 SEG1-Circlip for axles Ø160 160 4 151 13.3 12.5 155 4.15 7.5 P.O.R.
SEG1165 SEG1-Circlip for axles Ø165 165 4 155.5 13.5 12.9 160 4.15 7.5 P.O.R.
SEG1170 SEG1-Circlip for axles Ø170 170 4 160.5 13.5 12.9 165 4.15 7.5 P.O.R.
SEG1175 SEG1-Circlip for axles Ø175 175 4 165.5 13.5 13.5 170 4.15 7.5 P.O.R.
SEG1180 SEG1-Circlip for axles Ø180 180 4 170.5 14.2 13.5 175 4.15 7.5 P.O.R.
SEG1185 SEG1-Circlip for axles Ø185 185 4 175.5 14.2 14 180 4.15 7.5 P.O.R.
SEG1190 SEG1-Circlip for axles Ø190 190 4 180.5 14.2 14 185 4.15 7.5 P.O.R.
SEG1195 SEG1-Circlip for axles Ø195 195 4 185.5 14.2 14 190 4.15 7.5 P.O.R.
SEG1200 SEG1-Circlip for axles Ø200 200 4 190.5 14.2 14 195 4.15 7.5 P.O.R.
SEG1210 SEG1-Circlip for axles Ø210 210 5 198 14.2 14 204 5.15 9 P.O.R.
SEG1220 SEG1-Circlip for axles Ø220 220 5 208 14.2 14 214 5.15 9 P.O.R.
SEG1230 SEG1-Circlip for axles Ø230 230 5 218 14.2 14 224 5.15 9 P.O.R.
SEG1240 SEG1-Circlip for axles Ø240 240 5 228 14.2 14 234 5.15 9 P.O.R.
SEG1250 SEG1-Circlip for axles Ø250 250 5 238 14.2 14 244 5.15 9 P.O.R.
SEG1260 SEG1-Circlip for axles Ø260 260 5 245 16.2 16 252 5.15 9 P.O.R.
SEG1270 SEG1-Circlip for axles Ø270 270 5 255 16.2 16 262 5.15 9 P.O.R.
SEG1280 SEG1-Circlip for axles Ø280 280 5 265 16.2 16 272 5.15 9 P.O.R.
SEG1290 SEG1-Circlip for axles Ø290 290 5 275 16.2 16 282 5.15 9 P.O.R.
SEG1300 SEG1-Circlip for axles Ø300 300 5 285 16.2 16 292 5.15 9 P.O.R.
Ex Stock
3-5 w-days
5-10 w-days
Contact Sales Office
SKU: SEG1 Category:

Associated Products

  • SEG2

    Circlips for Bores
