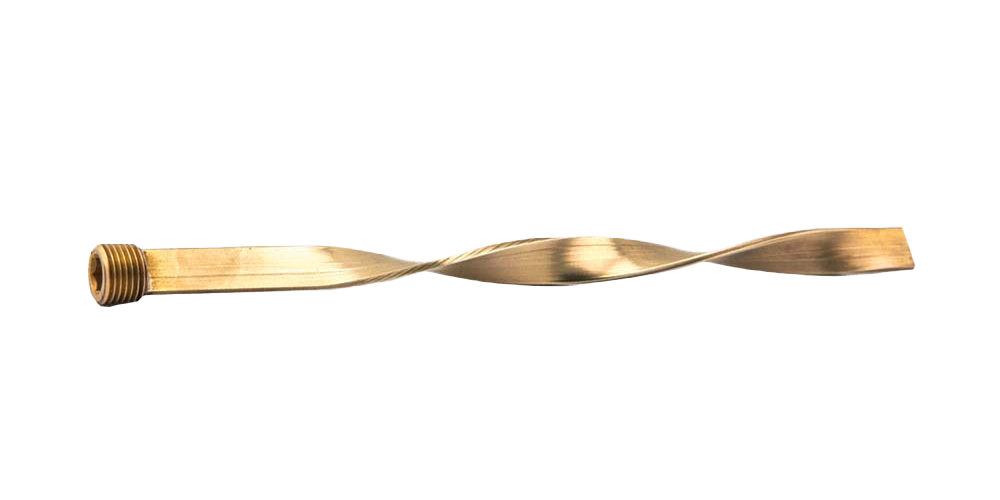

Cooling Circuit Baffle Spiral - Brass
Technical Information
  • Ø represents cooling channel diameter to be drilled
  • Improve heat exchange by reating turbulence in the coolant flow

RAS

Login to view prices

Cooling Circuit Baffle Spiral – Brass

Code Description D1 L A D2 L1 L2 L3 L4 S SW Ø Price/1
RAS1-402 RAS1x402-Baffle Plug Spiral Shape 1" 402 23.5 23.5 14 127 30 18 3.2 14 28.5 P.O.R.
RAS1-602 RAS1x602-Baffle Plug Spiral Shape 1" 602 23.5 23.5 14 203 30 18 3.2 14 28.5 P.O.R.
RASM8-100 RASM8x100-Baffle Plug Spiral Shape M8 100 6.2 6.2 6 51 5 10 2 4 6.5 P.O.R.
RASM8-200 RASM8x200-Baffle Plug Spiral Shape M8 200 6.2 6.2 6 102 10 10 2 4 6.5 P.O.R.
RASM10-100 RASM10x100-Baffle Plug Spiral Shape M10 100 8.2 8.2 7 51 5 11 2 5 8.5 P.O.R.
RASM10-200 RASM10x200-Baffle Plug Spiral Shape M10 200 8.2 8.2 7 102 10 11 2 5 8.5 P.O.R.
RASM12-100 RASM12x100-Baffle Plug Spiral Shape M12 100 10.2 10.2 8 51 5 12 2 6 10.5 P.O.R.
RASM12-200 RASM12x200-Baffle Plug Spiral Shape M12 200 10.2 10.2 8 102 10 12 2 6 10.5 P.O.R.
RAS1-2-203 RAS1/2x203-Baffle Plug Spiral Shape 1/2" 203 18.5 18.5 12 76 10 16 2.4 10 18.5 P.O.R.
RAS1-2-402 RAS1/2x402-Baffle Plug Spiral Shape 1/2" 402 18.5 18.5 12 127 30 16 2.4 10 18.5 P.O.R.
RAS1-4-127 RAS1/4x127-Baffle Plug Spiral Shape 1/4" 127 11.5 11.5 9 51 5 13 2.4 6 11.5 P.O.R.
RASM14-200 RASM14x200-Baffle Plug Spiral Shape M14 200 11.2 11.2 10 102 10 14 2 6 11.5 P.O.R.
RAS1-4-254 RAS1/4x254-Baffle Plug Spiral Shape 1/4" 254 11.5 11.5 9 102 10 13 2.4 6 11.5 P.O.R.
RAS1-8-101 RAS1/8x101-Baffle Plug Spiral Shape 1/8" 101 8.5 8.5 7 51 5 11 1.6 5 8.5 P.O.R.
RAS1-8-203 RAS1/8x203-Baffle Plug Spiral Shape 1/8" 203 8.5 8.5 7 102 10 11 1.6 5 8.5 P.O.R.
RAS3-4-302 RAS3/4x302-Baffle Plug Spiral Shape 3/4" 302 23.5 23.5 14 102 20 18 3.2 14 23.5 P.O.R.
RAS3-4-502 RAS3/4x502-Baffle Plug Spiral Shape 3/4" 502 23.5 23.5 14 153 30 18 3.2 14 23.5 P.O.R.
RAS3-8-152 RAS3/8x152-Baffle Plug Spiral Shape 3/8" 152 15 15 11 51 5 14 2.4 8 15 P.O.R.
RAS3-8-305 RAS3/8x305-Baffle Plug Spiral Shape 3/8" 305 15 15 11 102 20 14 2.4 8 15 P.O.R.
RAS1-16-101 RAS1/16x101-Baffle Plug Spiral Shape 1/16" 101 6.5 6.5 7 51 5 11 1.6 5 6.5 P.O.R.
RAS1-16-203 RAS1/16x203-Baffle Plug Spiral Shape 1/16" 203 6.5 6.5 7 102 10 11 1.6 5 6.5 P.O.R.
Ex Stock
3-5 w-days
5-10 w-days
Contact Sales Office
SKU: RAS Category:

Associated Products

  • RF

    Cooling Circuit Fountain Cooler – Series – Brass

  • RAP

    Cooling Circuit Baffle Flat – Brass

  • RFP

    Cooling Circuit Fountain Cooler – Parallel – Brass
