K-40711

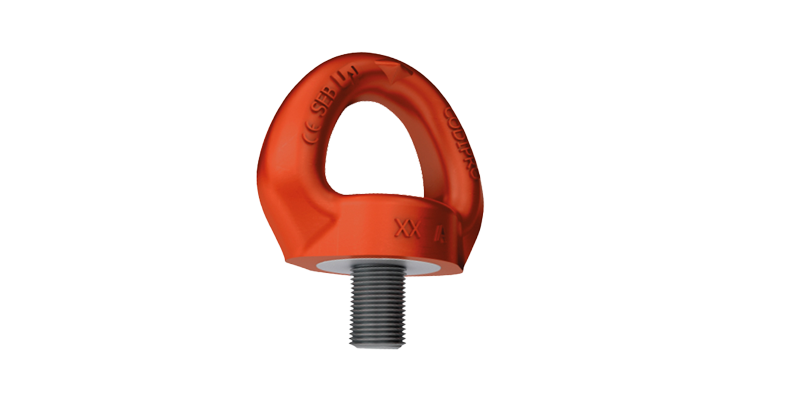

Eyebolt – revolving under load

Code	Description	d1	max. kg 1	max. kg 2	max. kg 3	l	b	b1	h	h1	SW	Nm	kg	Price/1
K-40711-001	Eyebolt Revolving under load-40711/M8	M8	800	500	700	14	34	60	57	30	6	6	0.24	P.O.R.
K-40711-002	Eyebolt Revolving under load-40711/M10	M10	1600	700	980	17	34	60	57	30	6	10	0.24	P.O.R.
K-40711-003	Eyebolt Revolving under load-40711/M12	M12	1900	900	1260	21	34	60	57	30	6	15	0.24	P.O.R.
K-40711-004	Eyebolt Revolving under load-40711/M16	M16	3200	1800	2520	27	45	88	80	38	8	50	0.8	P.O.R.
K-40711-005	Eyebolt Revolving under load-40711/M20	M20	6500	2700	3780	30	45	88	80	38	8	100	0.8	P.O.R.
K-40711-006	Eyebolt Revolving under load-40711/M24	M24	8000	3800	5320	36	45	88	80	38	14	160	0.8	P.O.R.
K-40711-007	Eyebolt Revolving under load-40711/M30	M30	10000	6300	8820	45	70	115	106	58	14	250	2.7	P.O.R.
K-40711-008	Eyebolt Revolving under load-40711/M36	M36	12000	11000	15400	54	94	168	155	83	14	320	7	P.O.R.
K-40711-009	Eyebolt Revolving under load-40711/M42	M42	15000	15000	21000	63	94	168	155	83	14	400	7	P.O.R.

Ex Stock

3-5 w-days

5-10 w-days

Contact Sales Office

SKU: K-40711 Category: Lifting
