K-30100
Quick Change EP Receptacle - Hardened
Technical Information
  • Allows the quick change of ejectors/outline pins and ejector sleeves from the parting line of the mould without removing the mould from the injection machine.

K-30100

Login to view prices

Quick Change EP Receptacle – Hardened

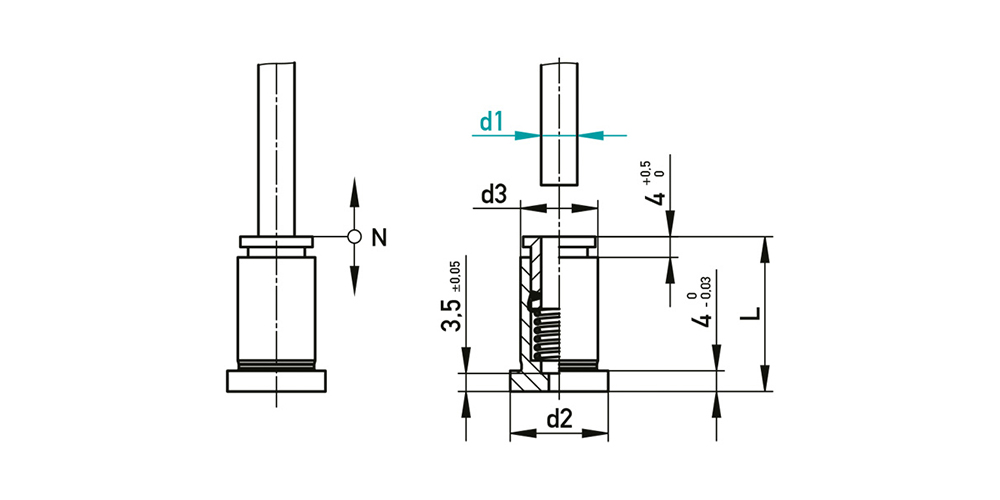

Code Description d1 d3 d2 N Price/1
K-30100-001 Quick Change Holder for EP-30100/3 3 11 15 > 2.550 P.O.R.
K-30100-002 Quick Change Holder for EP-30100/4 4 12 16 > 2.550 P.O.R.
K-30100-003 Quick Change Holder for EP-30100/5 5 13 17 > 3.800 P.O.R.
K-30100-004 Quick Change Holder for EP-30100/6 6 14 18 > 3.800 P.O.R.
K-30100-005 Quick Change Holder for EP-30100/7 7 15 19 > 4.400 P.O.R.
K-30100-006 Quick Change Holder for EP-30100/8 8 16 20 > 5.100 P.O.R.
K-30100-007 Quick Change Holder for EP-30100/9 9 17 21 > 5.700 P.O.R.
K-30100-008 Quick Change Holder for EP-30100/10 10 18 22 > 6.400 P.O.R.
K-30100-009 Quick Change Holder for EP-30100/12 12 20 24 > 7.600 P.O.R.
Ex Stock
3-5 w-days
5-10 w-days
Contact Sales Office
SKU: K-30100 Category:

Associated Products

  • K-37111

    Ejector Pin Type AH – Hardened – Extended Range

  • EES2T

    Ejector Pin Type AH – Hardened – 6751 AH
