Slide Unit - Square 3pc
Technical Information
Material:
Steel
Hardness:
53 HRC
Coating:
none
  • Square 3pc - ¨32 - ¨40 - 4.9 - 17.25mm travel
  • Compact installation space (slide actuation and locking via wedge)
  • Easy mounting from the parting line
  • Fast replacement in case of breakage (stock item)
  • Integrated locking function

K-294394

Login to view prices

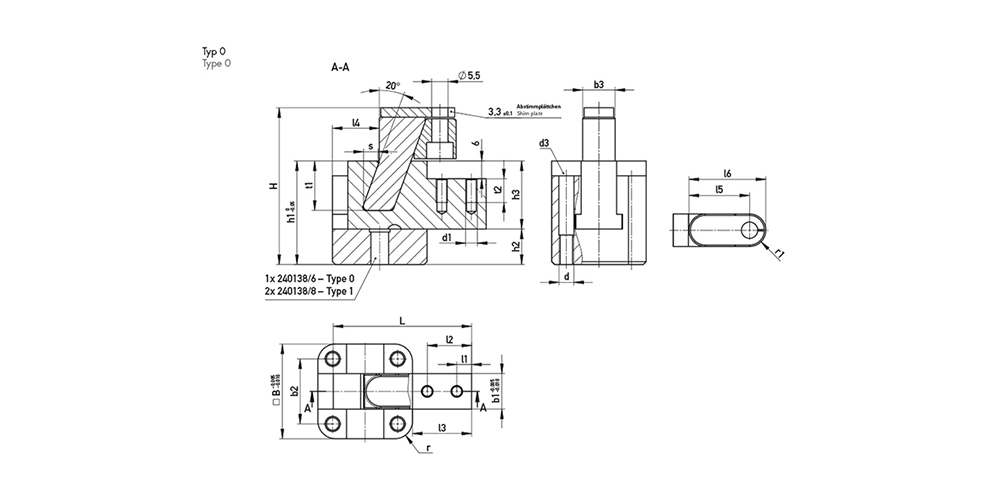

Slide Unit – Square 3pc

Code Description B l6 b2 b1 h3 h2 h1 H r1 r t2 t1 l5 s l4 l3 l2 l1 L d3 (M) d1 (M) d (M) Type b3 Price/1
K-294394/0 Slide Unit - inst 32 Slide Travel 4.9 32 26 22 12 23 12 35 53 5.5 6 8 16 20.5 4.9 16 20 15 5 46.8 4 4 5 0 11 P.O.R.
K-294394/1 Slide Unit - inst 50 Slide Travel 6.8 50 30 36 22 30 15 45 63 6.5 8 12 21.5 24.5 6.8 20.1 25 18 6 66.8 6 5 8 1 20 P.O.R.
K-294394/2 Slide Unit - inst 60 Slide Travel 17.25 60 42 46 31 40 17 57 85 8.5 8 12 55 35.5 17.25 25.1 25 18 6 75 6 5 8 2 30 P.O.R.
Ex Stock
3-5 w-days
5-10 w-days
Contact Sales Office
SKU: K-294394 Category:
