K-294290

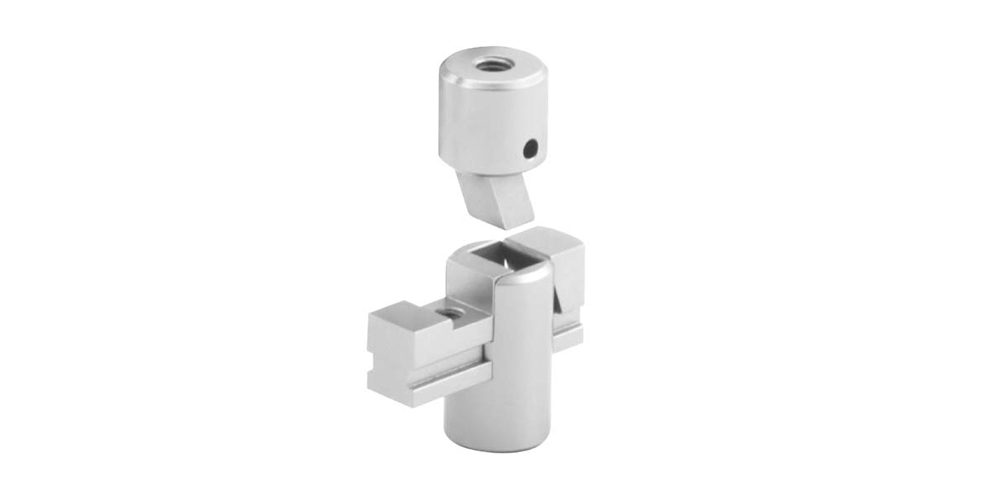

Slide Unit - Round 1pc
Technical Information
Material:
Steel
Hardness:
53 HRC
Coating:
none
  • Round 1pc - Ø16 - Ø40 - 2.7 - 6.4mm travel
  • Compact installation space (slide actuation and locking via wedge)
  • Easy mounting from the parting line
  • Fast replacement in case of breakage (stock item)
  • Integrated locking function

K-294290

Login to view prices

Slide Unit – Round 1pc

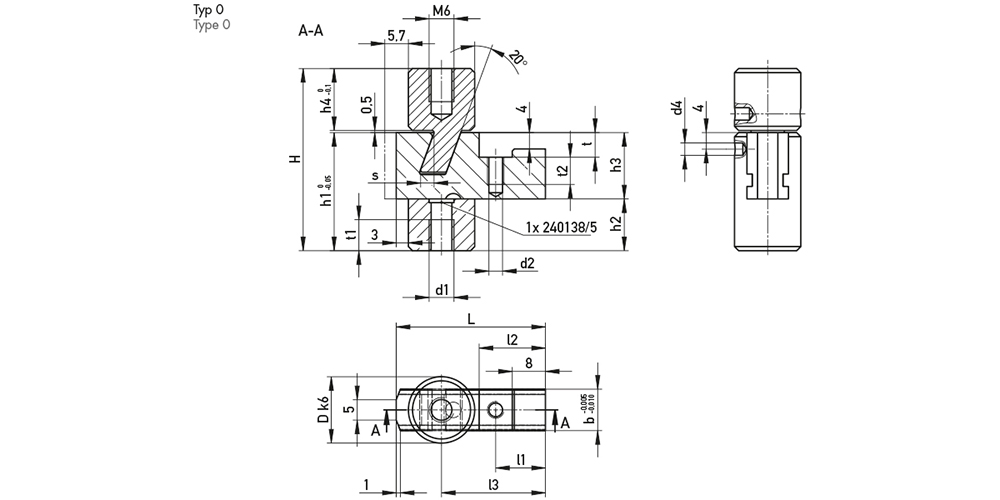

Code Description D H t2 t1 t h4 h3 h2 h1 l3 s l2 l1 L d4 d2 (M) d1 (M) Type b Price/1
K-294290/0 Slide Unit - inst Ø16 Slide Travel 2.7 16 44 6.5 7.5 6 15 16 12.5 28.5 25 2.7 16 12 36 3 4 6 0 10 P.O.R.
K-294290/1 Slide Unit - inst Ø25 Slide Travel 3.4 25 61.5 8 9 2.5 26.5 18 16.5 34.5 24.2 3.4 13.9 10.8 32.8 3 3 6 1 11 P.O.R.
K-294290/2 Slide Unit - inst Ø40 Slide Travel 6.4 40 60.5 8 12 8 20 28 12 40 37 6.4 20 8.1 50 4 5 8 2 22 P.O.R.
Ex Stock
3-5 w-days
5-10 w-days
Contact Sales Office
SKU: K-294290 Category:
