GH

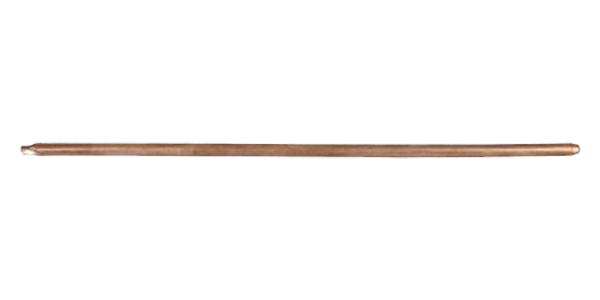

Heat Sink - Iso Pipes
Technical Information
  • Can save up to 30% of mould cucle time
  • prevents colour inconsistancies
  • When installing add 0.15mm than dia of Heat Sink
  • 1/3 of Heat Sink must be emersed in water channel

GH

Login to view prices

Heat Sink – Iso Pipes

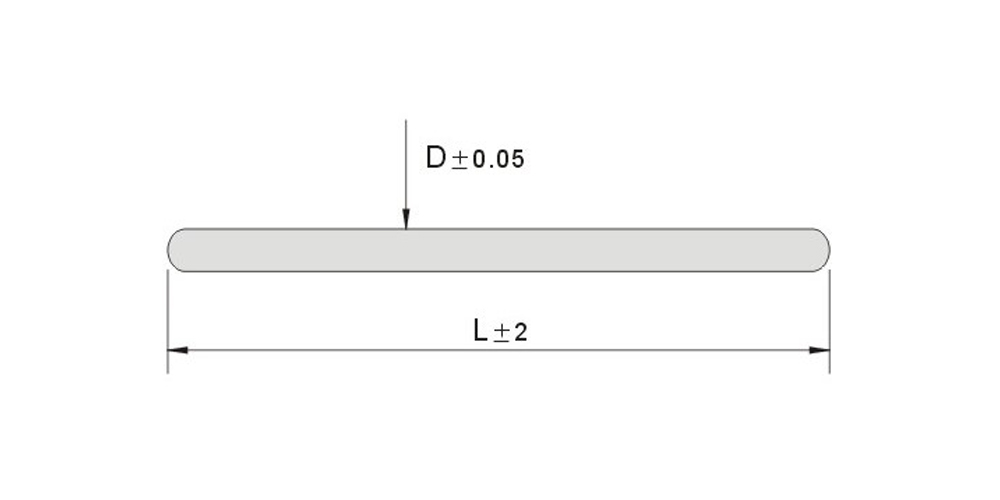

Code Description D L min L max Price/1
GH34080 GH- Heatsink Ø3x40-80 3 40 80 P.O.R.
GH381150 GH- Heatsink Ø3x81-150 3 81 150 P.O.R.
GH3121150 GH- Heatsink Ø3x121-150 3 121 150 P.O.R.
GH3151185 GH- Heatsink Ø3x151-185 3 151 185 P.O.R.
GH3186220 GH- Heatsink Ø3x186-220 3 186 220 P.O.R.
GH3221250 GH- Heatsink Ø3x221-250 3 221 250 P.O.R.
GH3251275 GH- Heatsink Ø3x251-275 3 251 275 P.O.R.
GH3276300 GH- Heatsink Ø3x276-300 3 276 300 P.O.R.
GH44080 GH- Heatsink Ø4x40-80 4 40 80 P.O.R.
GH481150 GH- Heatsink Ø4x81-150 4 81 150 P.O.R.
GH4121150 GH- Heatsink Ø4x121-150 4 121 150 P.O.R.
GH4151185 GH- Heatsink Ø4x151-185 4 151 185 P.O.R.
GH4186220 GH- Heatsink Ø4x186-220 4 186 220 P.O.R.
GH4221250 GH- Heatsink Ø4x221-250 4 221 250 P.O.R.
GH4251275 GH- Heatsink Ø4x251-275 4 251 275 P.O.R.
GH4276300 GH- Heatsink Ø4x276-300 4 276 300 P.O.R.
GH54080 GH- Heatsink Ø5x40-80 5 40 80 P.O.R.
GH581150 GH- Heatsink Ø5x81-150 5 81 150 P.O.R.
GH5121150 GH- Heatsink Ø5x121-150 5 121 150 P.O.R.
GH5151185 GH- Heatsink Ø5x151-185 5 151 185 P.O.R.
GH5186220 GH- Heatsink Ø5x186-220 5 186 220 P.O.R.
GH5221250 GH- Heatsink Ø5x221-250 5 221 250 P.O.R.
GH5251275 GH- Heatsink Ø5x251-275 5 251 275 P.O.R.
GH5276300 GH- Heatsink Ø5x276-300 5 276 300 P.O.R.
GH64080 GH- Heatsink Ø6x40-80 6 40 80 P.O.R.
GH681150 GH- Heatsink Ø6x81-150 6 81 150 P.O.R.
GH6121-150 GH- Heatsink Ø6x121-150 6 121 150 P.O.R.
GH6151185 GH- Heatsink Ø6x151-185 6 151 185 P.O.R.
GH6186220 GH- Heatsink Ø6x186-220 6 186 220 P.O.R.
GH6221250 GH- Heatsink Ø6x221-250 6 221 250 P.O.R.
GH6251275 GH- Heatsink Ø6x251-275 6 251 275 P.O.R.
GH6276300 GH- Heatsink Ø6x276-300 6 276 300 P.O.R.
GH84080 GH- Heatsink Ø8x40-80 8 40 80 P.O.R.
GH881150 GH- Heatsink Ø8x81-150 8 81 150 P.O.R.
GH8121150 GH- Heatsink Ø8x121-150 8 121 150 P.O.R.
GH8151185 GH- Heatsink Ø8x151-185 8 151 185 P.O.R.
GH8186220 GH- Heatsink Ø8x186-220 8 186 220 P.O.R.
GH8221250 GH- Heatsink Ø8x221-250 8 221 250 P.O.R.
GH8251275 GH- Heatsink Ø8x251-275 8 251 275 P.O.R.
GH8276-300 GH- Heatsink Ø8x276-300 8 276 300 P.O.R.
Ex Stock
3-5 w-days
5-10 w-days
Contact Sales Office
SKU: GH Category:
