BRS3

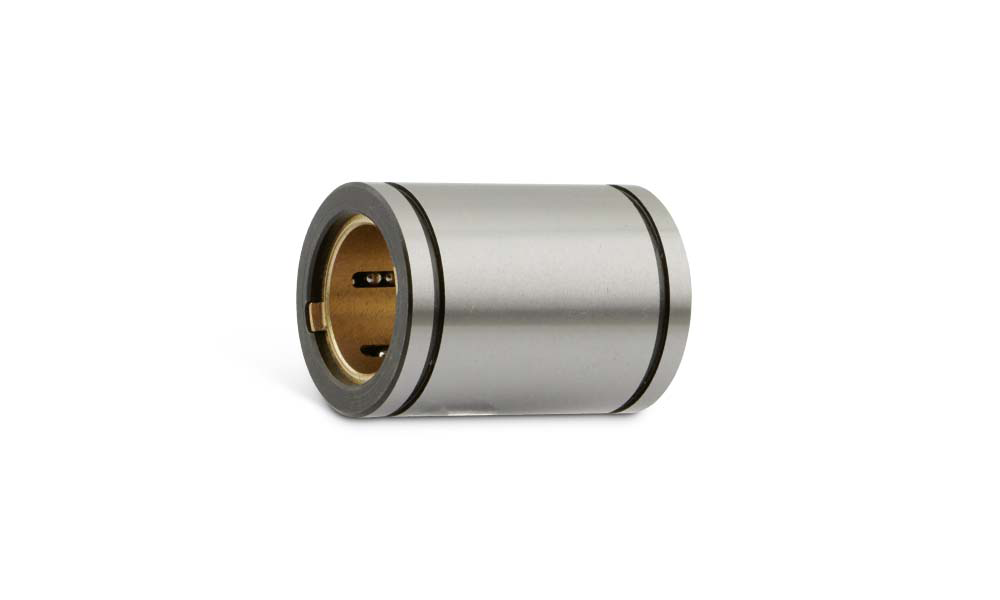

Recirculating Balls Bush Without Shoulder

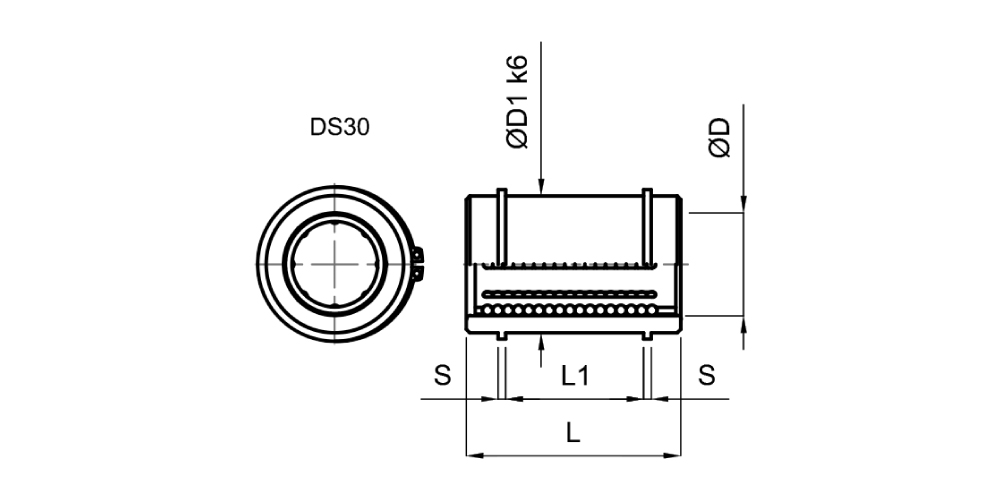

Code	Description	D	L	D1	L1	S	Ø Ball	N.L.	Price/1
BRS301230	BRS-12/24-30 Recirculating ball bus DS30	12	30	24	30	20	1.3	3	P.O.R.
BRS301630	BRS-16/28-30 Recirculating ball bus DS30	16	30	28	30	19	1.6	3	P.O.R.
BRS301635	BRS-16/28-35 Recirculating ball bus DS30	16	35	28	35	24	1.6	3	P.O.R.
BRS302035	BRS-20/32-35 Recirculating ball bus DS30	20	35	32	35	24	1.6	3	P.O.R.
BRS302045	BRS-20/32-45 Recirculating ball bus DS30	20	45	32	45	34	1.6	3	P.O.R.
BRS302535	BRS-25/40-35 Recirculating ball bus DS30	25	35	40	23	1.8	3	8	P.O.R.
BRS302545	BRS-25/40-45 Recirculating ball bus DS30	25	45	40	33	1.8	3	8	P.O.R.
BRS302555	BRS-25/40-55 Recirculating ball bus DS30	25	55	40	43	1.8	3	8	P.O.R.
BRS303245	BRS-32/50-45 Recirculating ball bus DS30	32	45	50	33	2.1	4	8	P.O.R.
BRS303263	BRS-32/50-63 Recirculating ball bus DS30	32	63	50	51	2.1	4	8	P.O.R.
BRS304045	BRS-40/60-45 Recirculating ball bus DS30	40	45	60	33	2.1	4	8	P.O.R.
BRS304063	BRS-40/60-63 Recirculating ball bus DS30	40	63	60	51	2.1	4	8	P.O.R.
